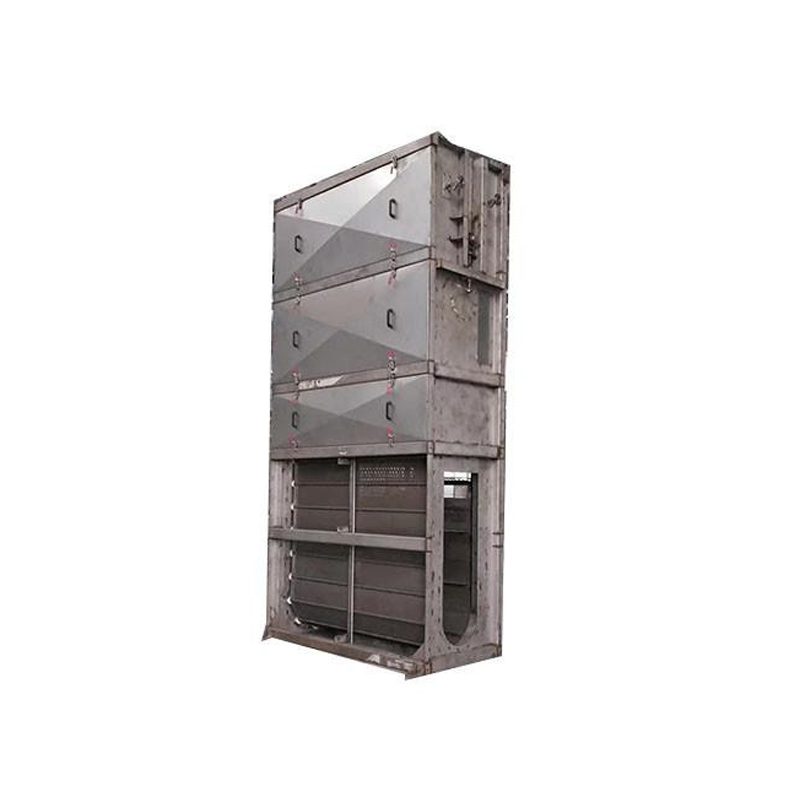

The internal inflow type mesh grid cleaning machine is a specialized water treatment equipment produced by Longdai that can continuously and automatically intercept and remove various shapes of debris in the fluid. It can be widely used in urban sewage treatment, especially for removing fibrous waste from printing and dyeing wastewater. It is currently one of the solid-liquid screening equipment.
Working Principle
The continuous perforated grid plate of the mesh grid is installed parallel to the water flow direction and is equipped with a garbage lifting device fixed on the mesh plate. The design of the inlet ensures that all sewage enters from the middle of the grid and is discharged from both sides, and garbage cannot overflow to the back of the grid.
The driving sprocket is fixed on the driving shaft, and as the driving shaft rotates, the driving sprocket drives the grid plate fixed on the chain to circulate. The driving shaft is driven by a shaft mounted gearbox and motor.
During operation, the gearbox installed on the forward output shaft of the frame drives the groove wheel to rotate, and then the groove wheel drives the chains on both sides of the filter screen to continuously rotate. From bottom to top, the intercepted dirt within its length range is extracted upwards with the rotation of the filter screen. When it reaches the upper part, most of it falls off by gravity through the steering function of the sprocket, and a small amount of dirt falls off completely under the washing device on the top, The slag water is discharged into the slag collection tank between the mesh plates on both sides and then flows out of the machine.
Application
The internal inflow type mesh grid decontamination machine is an efficient fine grid decontamination equipment that combines interception and decontamination. Suitable for large, medium, and small pump stations as fine grids to intercept and remove floating objects in water, such as weeds, paper pieces, cigarette butts, melon seeds, fibers, hair, etc. This model has a high dirt capture rate and can ensure the effective implementation of subsequent treatment processes.
Model & Specifications
| Model | LDCF-500 | LDCF-600 | LDCF-700 | LDCF-800 | LDCF-1200 |
| Device Width(mm) | 500 | 600 | 700 | 800 | 1200 |
| Channel Width(mm) | 600 | 700 | 800 | 900 | 1300 |
| Effective Grid Width(mm) | 343 | 443 | 543 | 643 | 1043 |
| Rake Tooth Clearance(mm) | 1/3/5/10/15/20/25/30/40/50 | ||||
| Installation angle(°) | 60-85 | ||||
| Channel Depth(mm) | 800-1200 | ||||
| Running Speed(m/min) | about 2.1 | ||||
| Power(KW) | 0.55-1.1 | 0.75-1.5 | 1.1-2.2 | ||
