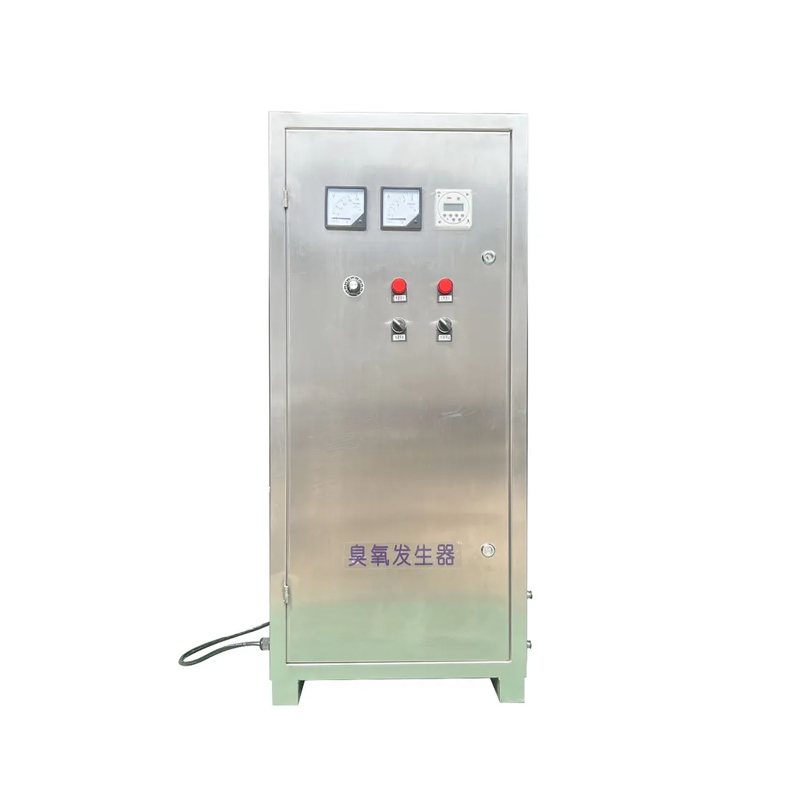

3G/5G oxygen source water-cooled and air-cooled ozone generator for swimming pool 200G air source water-cooled ozone generator

Ozone belongs to broad-spectrum sterilization and has a strong killing effect on various bacteria and viruses. The generated ozone gas has strong oxidation, catalytic and other effects. Viruses and bacteria are subjected to various free radicals in the ozone gas, causing protein dissociation and denaturation, reducing the activity of nucleic acids and enzymes, and thus disinfecting, sterilizing, and purifying the air; Ozone undergoes complex physical and chemical reactions such as degradation and oxidation with toxic and harmful gases such as formaldehyde, carbon dioxide, and xylene, and the by-products are non-toxic and harmless, avoiding secondary pollution.

Product Composition

1. Ozone tube: The dielectric material is a high-purity dehydroxylated quartz tube, with a dehydroxylated content of less than 10ppm and a SiO2 content of over 98%. It has a temperature resistance of 1600 degrees Celsius and a withstand voltage of 30KV, which is much higher than the peak high voltage output of 7KV by the matched high-frequency high-voltage power supply. It will not be destroyed by high-voltage breakdown. Inner electrode: 316L stainless steel tube, new material grade: 022Cr17Ni12Mo2, with better corrosion resistance than 304 stainless steel. Under high voltage and high frequency continuous discharge, it will not be oxidized, blackened, rusted or deformed after 5 years of use; Discharge gap: 0.5MM; Head material: PVDF material plug with fluorine rubber ring, antioxidant, acid and alkali resistant, with a service life of up to 8 years.

2. High frequency and high voltage power supply: Rectifier frequency conversion circuit, high voltage package composed of ferrite magnetic core, polyester imide/polyamide imide composite layer enameled wire, epoxy high-temperature adhesive vacuum encapsulation, with open circuit protection, overvoltage and overvoltage protection, short circuit protection, high voltage frequency of 3-20KHZ, output sine wave waveform, greatly converting electrical energy, and power factor up to 0.97.

Working Principle

When a gas containing oxygen passes through the discharge gap between two electrodes, some oxygen molecules (O2) are converted into ozone (O3) to achieve ozone preparation. When there is a varying high voltage on the high-voltage electrode, micro discharge will occur at the discharge gap between the electrodes. Oxygen molecules are decomposed into free state oxygen atoms O, and some free state oxygen atoms recombine with undecomposed oxygen molecules to generate ozone (O3), which is called “corona discharge” or “silent discharge”.

In fact, only a portion of the electrical energy applied to the electrode is used to prepare ozone, which also generates heat during the preparation process. Cooling water is needed to effectively cool the ozone generation module. The ozone preparation process is significantly affected by the quality of feed gas and the temperature of cooling water. The lower the temperature, the higher the efficiency of ozone preparation.

How To Use

For water treatment

1. Place the ozone generator in a specific position (stable, dry, well ventilated and heat dissipation) in the water treatment process, at least 40 centimeters away from the wall; Check if the ozone silicone hose is properly connected to the ozone output port of the machine, and connect the ozone delivery pipe to the ozone dosing device for easy ozone delivery.

2. The ozone generator must be above the water level to prevent water from flowing back into the inside of the ozone generator and causing component damage. If you purchase a check valve, please connect it to the ozone delivery pipeline. It is prohibited to reverse connect the check valve.

3. Turn on the power and the voltmeter will display the current voltage. Turn on the air pump switch, the air pump indicator light will light up, the air pump will start working, and the ammeter will display the current current. Adjust the oxygen flow meter to 10L/min. After 5 seconds, turn on the ozone switch and slowly adjust the ozone concentration knob to maximum. The ozone output port has gas output. After use, it is necessary to first adjust the ozone concentration switch to the minimum position, then turn off the ozone switch, and then turn off the air pump switch after 5 seconds.

For Air Disinfection

1. Place the ozone generator in a specific (stable, well ventilated, and heat dissipating) location outside the room to be disinfected, check if the ozone silicone hose is connected to the ozone output port of the machine, and guide the ozone delivery pipe into the space to be disinfected. And add at a height of 2 meters.

2. To achieve the best ozone disinfection effect, please close doors and windows, and do not have personnel indoors during disinfection.

3. Turn on the power and the voltmeter will display the current voltage. Turn on the air pump switch, the air pump indicator light will light up, the air pump will start working, and the ammeter will display the current current. Adjust the oxygen flow meter to 10L/min. After 5 seconds, turn on the ozone switch and slowly adjust the ozone concentration knob to maximum. The ozone output port has gas output. After use, it is necessary to first adjust the ozone concentration switch to the minimum position, then turn off the ozone switch, and then turn off the air pump switch after 5 seconds.

Product Characteristic

1. High voltage discharge generator
Our ozone generator uses a high-frequency power supply system to cause electrochemical reactions of oxygen molecules in or around the electric field, thereby producing ozone. This ozone generator has the advantages of mature technology, stable operation, long service life, and large ozone production, making it the most widely used ozone generator in relevant industries both domestically and internationally.

2. Ozone safe cooling method
When the ozone generator is working, it generates a large amount of heat energy and needs to be cooled, otherwise ozone will decompose while generating due to high temperatures. The water-cooled generator has good cooling effect, stable operation, no attenuation of ozone, and can work continuously for a long time.

3. Ozone generator discharge technology
Quartz tubes are most commonly used in high-performance ozone generators due to their high dielectric constant, uniform wall thickness, good ellipticity, high temperature resistance, and moisture resistance. Ceramic plates are prone to brittle cracking and are only suitable for small generators. The wall thickness and ellipticity of ceramic tubes are difficult to control, and are prone to uneven discharge, so they are not used frequently. Glass and enamel pipes have low dielectric constant, poor high-temperature resistance, and are prone to cracking.

Advantage

1. Our ozone generator adopts a double ball bearing violent fan, which ensures good heat dissipation of the internal heating elements of the machine with high speed and large air volume. The ozone concentration decay rate is low, and long-term use can still ensure sufficient ozone production and concentration standards.

2. Our ozone generator adopts a silent oil-free compressor with a built-in cold dry filtration system and PSA oxygen generator, which can efficiently and stably provide high-purity oxygen to the ozone generator. The produced ozone concentration is high, up to 80MG/L, suitable for producing high concentration ozone water, treating difficult wastewater, bleaching and decolorization, etc.

3. Our ozone generator is a box type, which integrates the air compressor, ozone discharge chamber, power control board, and other accessories of the air source into one box.

4. The ozone discharge chamber is our company’s patented technology, which uses narrow gap discharge to generate high ozone concentration and stable output. The overall use of fully sealed technology ensures reliable operation.

5. The power supply unit (PSU) is the core technology of this series of models, including two major processes: frequency conversion and boost. It is equipped with automatic soft start function, strong load carrying capacity and multiple protection functions, and is efficient and stable.
