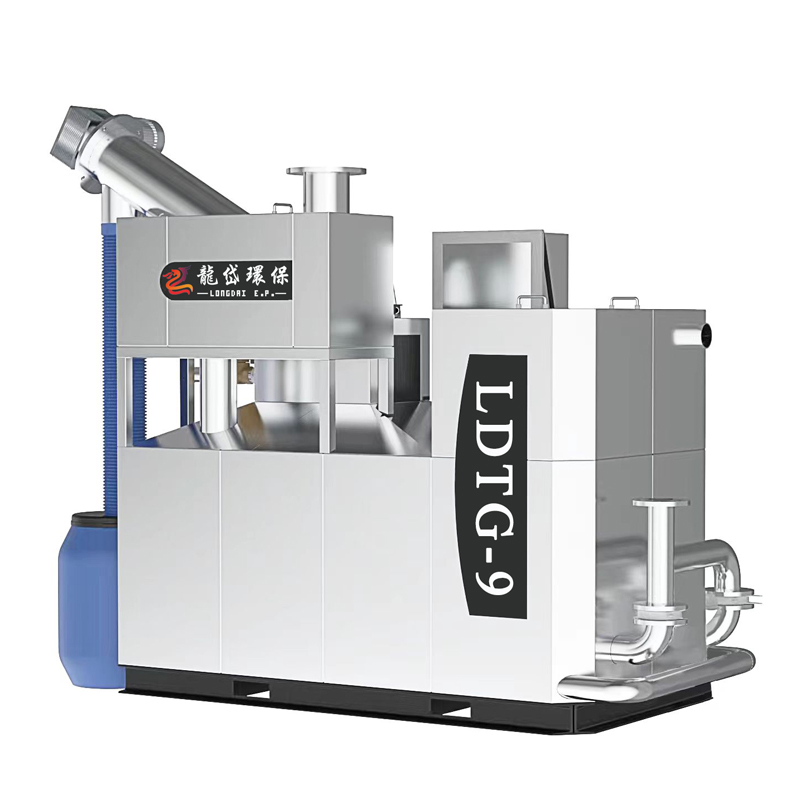

The LDGT9 series is suitable for improving the discharge of catering wastewater after treatment in the catering area of various Shopping mall or Commercial Plaza. It is especially suitable for users who have requirements for the automatic operation of slag removal, oil discharge and sludge discharge for oil separation equipment.
Functional Module
Phase 1: Solid-liquid separation
1.Differential grating;
2.Drainage separation
Phase 2: Oil water separation
1.Stay;
2.Time HRT;
3.Oil water diversion;
4.Constant temperature heating
Phase 3: Collection device
1.Floating oil collection;
2.Sediment collection
Stage 4: Lifting device
1.Wastewater discharge;
2.Sediment
Advantage
1. Far infrared carbon fiber: constant temperature floating heat separation technology;
2. Intelligent linkage: sediment discharge is fully automatic and maintenance free;
3. Disturbance connection: The liquid level difference between the separation zone and the lifting zone flows autonomously;
4. Aeration QF: Perforated Aeration Anti Sedimentation Technology.
Model & Specifications
| Type | Rated Flow(L/S) | Lift pump(KW) | Power(KW) | Size(mm) | Required dimensions for installation(mm) | Effective volume(L) | Weight(KG) | Operating weight(T) |
| LDTG9-415 | 3-5 | 1.5*2 | 6.2 | 2523*1000*1913 | 3400*1800*2300 | 700 | 495 | 2 |
| LDTG9-425 | 3.0*2 | 9.2 | 2523*1000*1913 | 3400*1800*2300 | 700 | 520 | 2 | |
| LDTG9-715 | 6-8 | 1.5*2 | 6.2 | 2523*1000*2113 | 3400*1800*2500 | 1440 | 535 | 2.5 |
| LDTG9-725 | 3.0*2 | 9.2 | 2523*1000*2113 | 3400*1800*2500 | 1440 | 580 | 2.5 | |
| LDTG9-1115 | 9-12 | 1.5*2 | 6.2 | 2723*1000*2113 | 3600*1800*2500 | 1620 | 570 | 3.0 |
| LDTG9-1125 | 4.0*2 | 11.2 | 2723*1000*2113 | 3600*1800*2500 | 1620 | 620 | 3.0 | |
| LDTG9-1515 | 13-16 | 2.2*2 | 7.6 | 3023*1000*2113 | 4000*2000*2500 | 2190 | 640 | 3.5 |
| LDTG9-1520 | 3.0*2 | 9.2 | 3023*1000*2113 | 4000*2000*2500 | 2190 | 680 | 3.5 | |
| LDTG9-1525 | 4.0*2 | 11.2 | 3023*1000*2113 | 4000*2000*2500 | 2190 | 690 | 3.5 |
