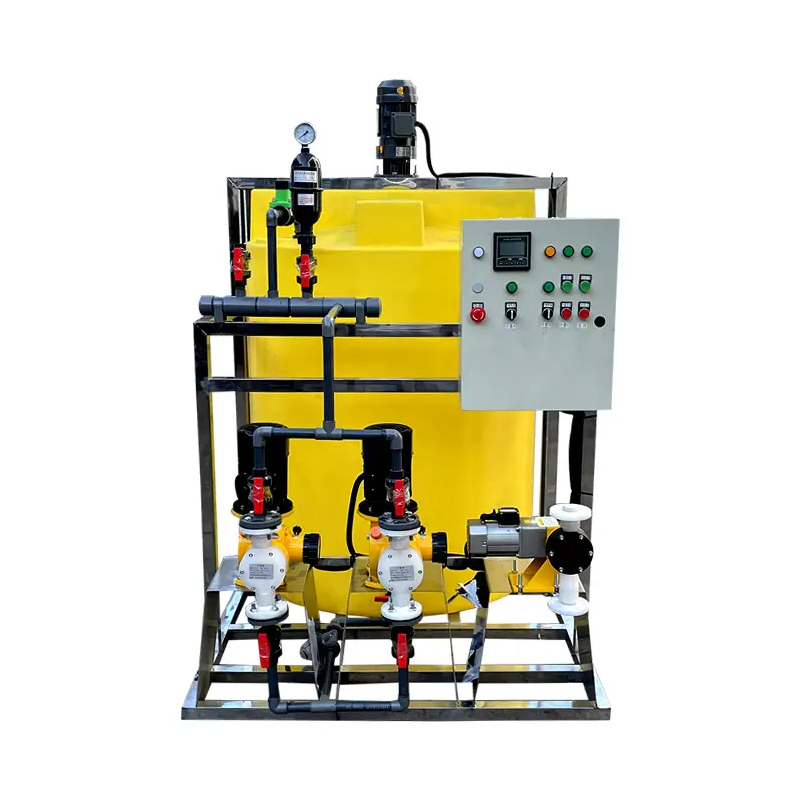

PE dosing bucket is a simple dosing equipment made of polyethylene. This machine is composed of a mixing motor, mixer, dosing port, water inlet, and washing water inlet. This equipment is small in size, low in cost, and suitable for small personnel on-site engineering. Small backup volume, low cost, suitable for small personnel on-site engineering.
Application
Water treatment and purification equipment; Storage and transportation of industrial cooling water, chemical agents, chemical products, raw materials, various oil products, and beverages.
Main Materials: Imported high-quality polyethylene (PE) plastic raw materials.
Advantage and Characteristic
1. Highly integrated integrated integrated equipment with a small footprint.;
2. High degree of automation, the entire system PLC achieves automatic control.
3. Easy to operate and easy to install, just connect the power supply and connect the inlet and outlet pipelines to use.
4. Safe, stable and reliable, with low system failure rate. In case of emergency, the system will automatically alarm and stop the entire system operation.
5. Stable performance, fully automatic control type can automatically adjust the dosage of dry powder according to changes in water flow.
6. Equipment corrosion resistance, all parts in contact with liquid are made of high-quality chemical anti-corrosion materials.
7.Dosing system has a wide range of applications, and can be used for diluting powder reagents or diluting concentrated liquids.
Model & Specifications
| Type | Capacity(L/H) | Size(mm) | Total Power(KW) | Mix Power(KW) | Dosing Pump(KW) |
| LD-500-PE01 | 500 | 830*1410*1580 | 1 | 0.75 | 0.25 |
| LD-500-PE02 | 1000 | 1660*1410*1580 | 2 | 0.75*2 | 0.25*2 |
| LD-1000-PE01 | 1000 | 1120*1720*1706 | 1 | 0.75 | 0.25 |
| LD-1000-PE02 | 2000 | 2240*1720*1706 | 2 | 0.75*2 | 0.25*2 |
| LD-2000-PE01 | 2000 | 1400*2000*2200 | 1.65 | 1.1 | 0.55 |
| LD-2000-PE02 | 4000 | 2800*2000*2200 | 3 | 1.1*2 | 0.55*2 |
